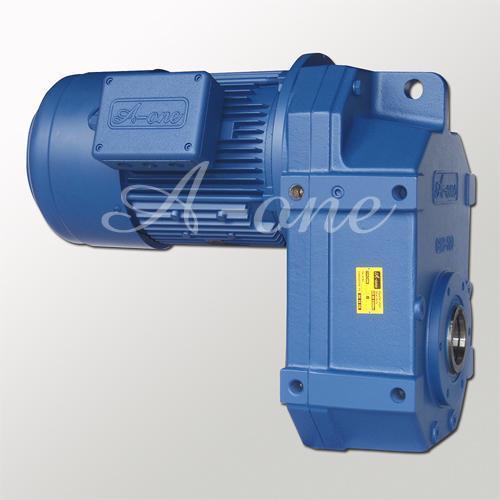

    Parallel shaft gear motor--GM7

    Parallel shaft gear motor--GM7

    Parallel shaft gear motor

    Product ID: GM7-SERIES(A-one)

    Gear boxes are designed with helical gear which makes it operate smoothly and quietly. It is characteristic of high torque and low backlash.

    The A-one gear motors applies modular design. Ratios are designed and selected to correspond with the normal usage of customers .Gear units are available for foot or flange mounting and can be installed in any directions and positions provided.

    Specification:
    Max. output torque: 7200Nm
    Ratio: 4 ~ 224
    Power: 1.1kW ~ 30kW
                                                          Output speed: 750rpm-4rpm
                                                          Output hollow shaft: key way 80mm


    Options
    Output flange
    Output shaft
    Spring operated disc brake, DC-Voltage
    Forced cooling fan
    Manual release of brake
    Space heater
    Thermal protector



    Specifications:


    Gear unit Type

     I
    Ratio

    Output speed n2

    Output
    torque T2

     Input torque of input unit T1(Nm)
    (for Fs=1.0)

    (60Hz)rpm

    (50Hz)rpm

    Nm

    15

    25

    50

    70

    120

    190

    240

    GM 7-4

    4.02

    447.76

    373.13

    2000

    GM 7-5

    5.20

    346.15

    288.46

    2500

    GM 7-6

    5.79

    310.88

    259.07

    1900

    GM 7-7

    7.29

    246.91

    205.76

    2000

    GM 7-9

    9.05

    198.90

    165.75

    2100

    GM 7-11

    10.88

    165.44

    137.87

    3600

    GM 7-14

    13.70

    131.39

    109.49

    3700

    GM 7-18

    18.00

    100.00

    83.33

    6000

    GM 7-22

    22.67

    79.40

    66.17

    6200

    GM 7-28

    28.15

    63.94

    53.29

    6700

    GM 7-36

    36.94

    48.73

    40.61

    6700

    -

    GM 7-45

    45.71

    39.38

    32.82

    6700

    -

    -

    GM 7-56

    55.16

    32.63

    27.19

    6800

    -

    -

    GM 7-71

    75.62

    23.80

    19.84

    7200

    -

    -

    -

    GM 7-90

    90.30

    19.93

    16.61

    7200

    -

    -

    -

    GM7-112

    108.98

    16.52

    13.76

    7200

    -

    -

    -

    -

    GM7-140

    143.64

    12.53

    10.44

    7200

    -

    -

    -

    -

    GM7-180

    180.08

    10.00

    8.33

    7200

    -

    -

    -

    -

    -

    GM7-224

    237.35

    7.58

    6.32

    7200

    -

    -

    -

    -

    -

    Certificate:
    • CE Approved
    • China CCC certificate(3C)
    Order Information:
    • Minimum Order: Negotiable
    • FOB: Taichung port, Keelung port
