    Geared Motor--GM4

    Geared Motor--GM4

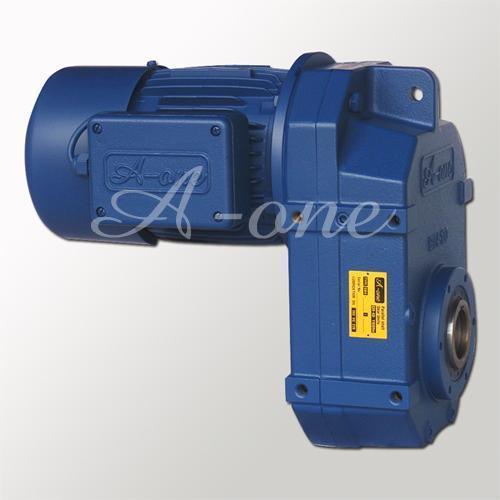

    Parallel Shaft Gear Motor

    Product ID: GM4-SERIES(A-one)

    As a leading manufacturer in the industry, A-One Crane adopts modular design for geared motor supplied. Ratios are designed and selected to correspond with the normal usage of customers. The unit of the geared motor is available for foot or flange mounting and can be installed in any directions and positions provided. By providing ranges of the options, A-One has therefore got the reputation in the machinery industry.

    Moreover, the geared motor boxes are designed with helical gear which makes it operate smoothly and quietly. It is characteristic of high torque and low backlash.  As a well-experienced manufacturer of gearmotor, we are confident of providing you the qualified products to meet your needs.

    We believe our company will be the best choice for your need, and we are looking forward to serving you in the near future. Hence, if you have any question about geared motor, you are welcomed to contact us for details.



    Specification:
    Max. output torque: 1100Nm
    Ratio: 4-224
    Power: 0.37kW-3.7kW
    Output speed: 750rpm-4rpm
    Output hollow shaft: 45mm ( with key way or spline )



    Options
    Output flange
    Output shaft
    Spring operated disc brake, DC-Voltage
    Forced cooling fan
    Manual release of brake
    Space heater
    Thermal protector



    Specifications:

    Geared Motor Type

     I
    Ratio

    Output speed n2

    Output
    torque T2

       Input torque of input unit T1(Nm)
    (for Fs=1.0)

    (60Hz)rpm

    (50Hz)rpm

    Nm

    2.5

    5

    10

    15

    25

    45

    50

    GM 4-4

    4.38

    410.96

    342.47

    380

    GM 4-5

    4.85

    371.13

    309.28

    390

    GM 4-6

    6.26

    287.54

    239.62

    400

    GM 4-7

    7.35

    244.90

    204.08

    430

    GM 4-9

    9.19

    195.87

    163.22

    430

    GM 4-11

    11.26

    159.86

    133.21

    730

    GM 4-14

    13.22

    136.16

    113.46

    780

    GM 4-18

    18.70

    96.26

    80.21

    1100

    GM 4-22

    21.96

    81.97

    68.31

    1100

    -

    GM 4-28

    27.44

    65.60

    54.66

    1100

    -

    -

    GM 4-36

    36.38

    49.48

    41.23

    1100

    -

    -

    GM 4-45

    45.29

    39.74

    33.12

    1100

    -

    -

    -

    GM 4-56

    55.78

    32.27

    26.89

    1100

    -

    -

    -

    GM 4-71

    75.21

    23.93

    19.94

    1100

    -

    -

    -

    -

    GM 4-90

    92.63

    19.43

    16.19

    1100

    -

    -

    -

    -

    GM4-112

    115.84

    15.54

    12.95

    1100

    -

    -

    -

    -

    -

    GM4-140

    140.17

    12.84

    10.70

    1100

    -

    -

    -

    -

    -

    GM4-180

    172.64

    10.43

    8.69

    1100

    -

    -

    -

    -

    -

    GM4-224

    215.89

    8.34

    6.95

    1100

    -

    -

    -

    -

    -

         -
    Certificate:
    • CE Approved
    • China CCC certificate(3C)
    Order Information:
    • Minimum Order: Negotiable
    • FOB: Taichung port, Keelung port
