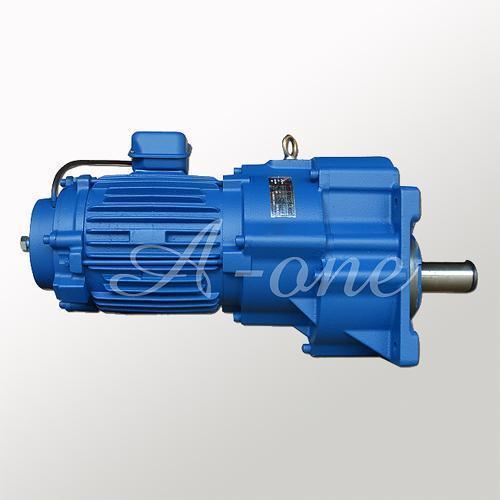

    Gear motor for end carriage LK-5.5A/ LK-H-5.5A

    Gear motor for end carriage LK-5.5A/ LK-H-5.5A

    Gear motor for end carriage

    Product ID: LK-5.5A/ LK-H-5.5A SERIES(CHEC)

    The gear boxes are designed with soft start which makes it operate smoothly and quietly. It is characteristic of reducing impact and increasing long life.

    The motor are high starting torque and high output load, The brake of motor can be easily adjusted brake torque.

    Specification:
    Power: 5.5kWx 4P or 3.7kWx6P,3.0/1.5kW x 4/8P ,
    3.0/1.0kW x 4/12P
    Power supply: 200V~600V/(50/60Hz)
    Ratio: 17.5,11,5
    With output pinion ( M4.0, M5.0, M6.0, M8.0 )

    Specifications:

    Type

    Power
    (KW)

    Pole

    Ratio

    60Hz

    50Hz

    Accessory

    Output speed
    (RPM)

    Output torque (Nm)

    Output speed
    (RPM)

    Output torque
    (Nm)

    LK-5.5A

    LK-5.5A-S

    5.5

    4

    17.5



    100

    525

    83

    633

     *With flange plate
    (Ø150 bore)

    3.7

    6

    66

    535

    55

    642

    3.0/1.5

    4/8

    100/50

    287

    83/42

    344

    3.0/1.5

    4/12

    100/33

    287

    83/28

    344

    LK-H-5.5A
    LK-H-5.5A-S

    5.5

    4

    11.5

    152

    346

    127

    414

    3.7

    6

    101

    350

    84

    421

    3.0/1.5

    4/8

    152/76

    188

    127/63

    226

    3.0/1.5

    4/12

    152/51

    188

    127/42

    226


    Sleeved pinion





     Module

    Teeth

    Shifted factor

    M4.0

    22T 25T

    0.5

    M5.0

    [14T] 16T 18T 21T

    0.5

    M6.0

    [12T] 14T 16T 18T 20T

    0.5

    M8.0

    11T

    0.5



    *Remark: The pinion in the [ ] is solid pinion.

    Certificate:
    • CE Approved
    • China CCC certificate(3C)
    Order Information:
    • Minimum Order: Negotiable
    • FOB: Taichung port, Keelung port
