    Parallel Gear Motor--GM3.5

    Parallel Gear Motor--GM3.5

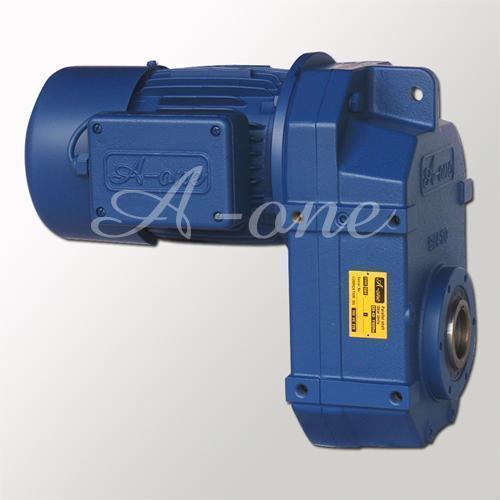

    Parallel Shaft Gear Motor

    Product ID: GM3.5-SERIES(A-one)

    The A-one parallel gear motor applies modular design. Ratios are designed and selected to correspond with the normal usage of customers .The units are available for foot or flange mounting and can be installed in any directions and positions provided. With the power from 0.37 kw to 3.7 kw and the ration from 4 to 224, the parallel gear motor provides not only good function of the motor but also various options for you to choose from.



    Gear boxes are designed with helical gear which makes it operate smoothly and quietly. The parallel gear motor is characteristic of high torque and low backlash. Please do not hestitate and contact us for more information about the quality product today. We are ready to serve you the best!


    A-ONE CRANE CO., LTD. is ISO certified company and receives CE marking certification for all products. We guarantee that we only offer you the best service and products. If you have any interest about our parallel gear motors, please contact us soon for details.






    Specification:Max. output torque: 900Nm
    Ratio: 4-224
    Power: 0.37kW-3.7kW
    Output speed: 750rpm-4rpm
    Output hollow shaft: 40mm ( with key way or spline )



    Options
    Output flange
    Output shaft
    Spring operated disc brake, DC-Voltage
    Forced cooling fan
    Manual release of brake
    Space heater
    Thermal protector



    Specifications:

    Gear unit Type

     I
    Ratio

    Output speed n2

    Output
    torque T2

      Input torque of input unit T1(Nm)
    (for Fs=1.0)

    (60Hz)rpm

    (50Hz)rpm

    Nm

    2.5

    5

    10

    15

    25

    45

    50

    GM3.5-4

    4.42

    407.24

    339.37

    360

    GM3.5-5

    4.67

    385.44

    321.20

    370

    GM3.5-6

    6.07

    296.54

    247.12

    390

    GM3.5-7

    7.15

    251.75

    209.79

    400

    GM3.5-9

    8.97

    200.67

    167.22

    400

    GM3.5-11

    11.16

    161.29

    134.41

    720

    GM3.5-14

    13.16

    136.78

    113.98

    780

    GM3.5-18

    18.67

    96.41

    80.34

    900

    -

    GM3.5-22

    22.01

    81.78

    68.15

    900

    -

    -

    GM3.5-28

    27.62

    65.17

    54.31

    900

    -

    -

    GM3.5-36

    34.88

    51.61

    43.00

    900

    -

    -

    -

    GM3.5-45

    43.72

    41.17

    34.31

    900

    -

    -

    -

    GM3.5-56

    53.85

    33.43

    27.86

    900

    -

    -

    -

    GM3.5-71

    73.12

    24.62

    20.51

    900

    -

    -

    -

    -

    GM3.5-90

    90.06

    19.99

    16.66

    900

    -

    -

    -

    -

    -

    GM3.5-112

    112.62

    15.98

    13.32

    900

    -

    -

    -

    -

    -

    GM3.5-140

    139.66

    12.89

    10.74

    900

    -

    -

    -

    -

    -

    GM3.5-180

    172.01

    10.46

    8.72

    900



    -

    -

    -

    -

    -

    -

    GM3.5-224

    215.10

    8.37

    6.97

    900

    -

    -

    -

    -

    -

    -

    Certificate:
    • CE Approved
    • China CCC certificate(3C)
    Order Information:
    • Minimum Order: Negotiable
    • FOB: Taichung port, Keelung port
