    Parallel Shaft Gear Motor--GM3

    Parallel Shaft Gear Motor--GM3

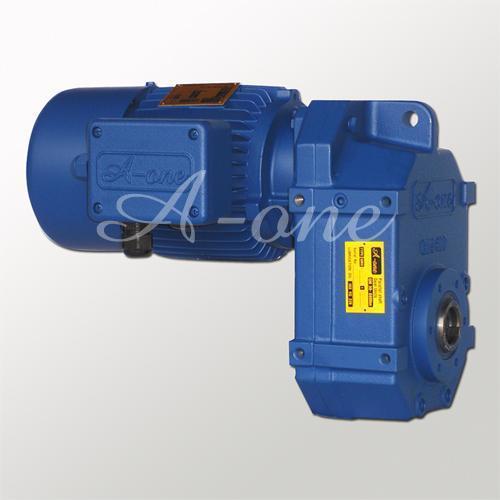

    Parallel shaft gear motor

    Product ID: GM3-SERIES(A-one)

    The A-One Crane is experienced in manufacturing gear units for decades.  With the advanced technique, the parallel gear unit is available for foot or flange mounting. The product can also be installed in any directions and positions provided.  Moreover, the rations are designed and selected to correspond with the normal usage of customers.

    We have a high standard on the product quality as well as the quality control.  By providing qualified parallel gear unit, we also offer fine customer services to satisfy our customers. We dedicate ourselves into improving the quality as well as innovating new techniques.  So please do not hesitate and contact with us for our quality parallel gear unit today.



    Specification:
    Max. output torque: 550Nm
    Ratio: 4-224
    Power: 0.18kW-2.2 kW
    Output speed: 750rpm-4rpm
    Output hollow shaft: key way 30mm;spline 30mm or 35mm

    Options:
    Output flange
    Output shaft
    Spring operated disc brake, DC-Voltage
    Forced cooling fan
    Manual release of brake
    Space heater
    Thermal protector





    Specifications:

    Gear unit Type

     I
    Ratio

    Output speed n2

    Output
    torque T2

    Input torque of input unit T1(Nm)
    (for Fs=1.0)

    (60Hz)
    rpm

    (50Hz)rpm

    Nm

    2.5

    5

    10

    15

    25

    45

    GM 3-4

    4.17

    431.65

    359.71

    300

    -

    GM 3-5

    5.11

    352.25

    293.54

    330

    -

    GM 3-6

    6.08

    296.05

    246.71

    350

    -

    GM 3-7

    7.70

    233.77

    194.81

    350

    -

    GM 3-9

    9.54

    188.68

    157.23

    370

    -

    GM 3-11

    10.64

    169.17

    140.98

    500

    -

    GM 3-14

    13.49

    133.43

    111.19

    550

    -

    GM 3-18

    17.61

    102.21

    85.18

    550

    -

    GM 3-22

    22.32

    80.65

    67.20

    550

    -

    -

    GM 3-28

    27.64

    65.12

    54.27

    550

    -

    -

    GM 3-36

    39.49

    45.58

    37.98

    550

    -

    -

    -

    GM 3-45

    44.77

    40.21

    33.50

    550

    -

    -

    -

    GM 3-56

    55.14

    32.64

    27.20

    550

    -

    -

    -

    -

    GM 3-71

    74.07

    24.30

    20.25

    550

    -

    -

    -

    -

    GM 3-90

    91.22

    19.73

    16.44

    550

    -

    -

    -

    -

    GM3-112

    114.07

    15.78

    13.15

    550

    -

    -

    -

    -

    -

    GM3-140

    140.04

    12.85

    10.71

    550

    -

    -

    -

    -

    -

    GM3-180

    175.12

    10.28

    8.57

    550

    -

    -

    -

    -

    -

    Certificate:
    • CE Approved
    • China CCC certificate(3C)
    Order Information:
    • Minimum Order: Negotiable
    • FOB: Taichung port, Keelung port
