    Parallel shaft gear motor--GM5

    Parallel shaft gear motor--GM5

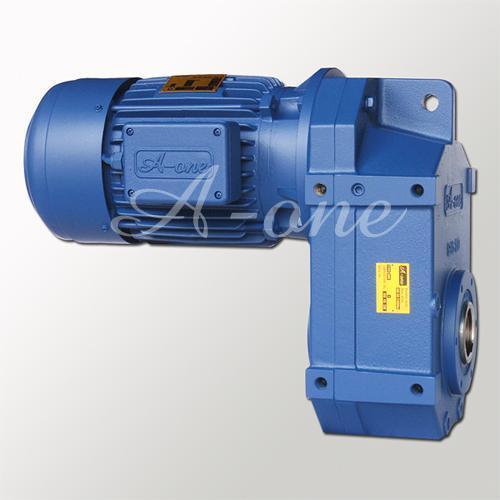

    Parallel shaft gear motor

    Product ID: GM5-SERIES(A-one)

    Gear boxes are designed with helical gear which makes it operate smoothly and quietly. It is characteristic of high torque and low backlash.

    The A-one gear motors applies modular design. Ratios are designed and selected to correspond with the normal usage of customers .Gear units are available for foot or flange mounting and can be installed in any directions and positions provided.


    Specification:
    Max. output torque: 2200Nm
    Ratio:4-224
    Power: 0.75kW-7.5kW
                                                         Output speed: 750rpm-4rpm
                                                         Output hollow shaft: key way 55mm;spline 55mm



    Options
    Output flange
    Output shaft
    Spring operated disc brake, DC-Voltage
    Forced cooling fan
    Manual release of brake
    Space heater
    Thermal protector



    Specifications:

    Gear unit Type

     I
    Ratio

    Output speed n2

    Output
    torque T2

         Input torque of input unit T1(Nm)
    (for Fs=1.0)

    (60Hz)
    rpm

    (50Hz)
    rpm

     Nm

    5

    10

    15

    25

    45

    50

    70

    GM 5-4

    4.19

    429.59

    358.00

    1120

    GM 5-5

    4.93

    365.11

    304.26

    1200

    GM 5-6

    6.18

    291.26

    242.72

    1250

    GM 5-7

    7.17

    251.05

    209.21

    1250

    GM 5-9

    9.58

    187.89

    156.58

    2200

    GM 5-11

    11.29

    159.43

    132.86

    2200

    GM 5-14

    14.13

    127.39

    106.16

    2200

    GM 5-18

    18.71

    96.21

    80.17

    2200

    GM 5-22

    23.42

    76.86

    64.05

    2200

    GM 5-28

    27.19

    66.20

    55.17

    2200

    GM 5-36

    35.86

    50.20

    41.83

    2200

    -

    GM 5-45

    43.00

    41.86

    34.88

    2200

    -

    -

    GM 5-56

    56.03

    32.13

    26.77

    2200

    -

    -

    -

    GM 5-71

    71.27

    25.26

    21.05

    2200

    -

    -

    -

    GM 5-90

    92.86

    19.38

    16.15

    2200

    -

    -

    -

    -

    GM5-112

    115.69

    15.56

    12.97

    2200

    -

    -

    -

    -

    GM5-140

    140.31

    12.83

    10.69

    2200

    -

    -

    -

    -

    GM5-180

    182.82

    9.85

    8.20

    2200

    -

    -

    -

    -

    -

    GM5-224

    227.77

    7.90

    6.59

    2200

    -

    -

    -

    -

    -

    -

    Certificate:
    • CE Approved
    • China CCC certificate(3C)
    Order Information:
    • Minimum Order: Negotiable
    • FOB: Taichung port, Keelung port
