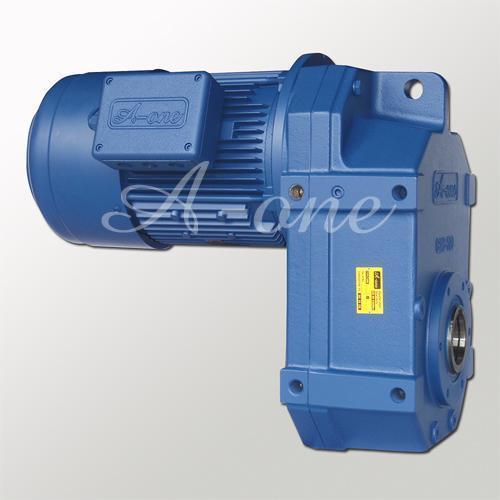

    Parallel shaft gear motor--GM6

    Parallel shaft gear motor--GM6

    Parallel shaft gear motor

    Product ID: GM6-SERIES(A-one)

    Gear boxes are designed with helical gear which makes it operate smoothly and quietly. It is characteristic of high torque and low backlash.

    The A-one gear motors applies modular design. Ratios are designed and selected to correspond with the normal usage of customers .Gear units are available for foot or flange mounting and can be installed in any directions and positions provided.

    Specification:
    Max. output torque: 4500Nm
    Ratio: 4-224
    Power: 1.1kW-18.5kW
                                                         Output speed: 750rpm-4rpm
                                                         Output hollow shaft: key way 70mm ; spline 65mm

    Options
    Output flange
    Output shaft
    Spring operated disc brake, DC-Voltage
    Forced cooling fan
    Manual release of brake
    Space heater
    Thermal protector


    Specifications:


    Gear unit Type

     I
    Ratio

    Output speed n2

    Output
    torque T2

    Input torque of input unit T1(Nm)
    (for Fs=1.0)

    (60Hz)rpm

    (50Hz)rpm

    Nm

    10

    15

    25

    50

    70

    120

    190

    GM 6-4

    4.15

    433.73

    361.45

    1700

    GM 6-5

    5.06

    355.73

    296.44

    1700

    GM 6-6

    5.83

    308.75

    257.29

    1750

    GM 6-7

    7.06

    254.96

    212.46

    1850

    GM 6-9

    8.76

    205.48

    171.23

    1900

    GM 6-11

    10.91

    164.99

    137.49

    3200

    GM 6-14

    13.22

    136.16

    113.46

    3500

    GM 6-18

    18.14

    99.23

    82.69

    4100

    GM 6-22

    21.99

    81.86

    68.21

    4100

    -

    GM 6-28

    27.25

    66.06

    55.05

    4500

    -

    GM 6-36

    36.55

    49.25

    41.04

    4500

    -

    GM 6-45

    42.88

    41.98

    34.98

    4500

    -

    -

    GM 6-56

    56.68

    31.76

    26.46

    4500

    -

    -

    GM 6-71

    71.30

    25.25

    21.04

    4500

    -

    -

    -

    GM 6-90

    84.83

    21.22

    17.68

    4500

    -

    -

    -

    -

    GM6-112

    112.12

    16.05

    13.38

    4500

    -

    -

    -

    -

    GM6-140

    146.00

    12.33

    10.27

    4500

    -

    -

    -

    -

    GM6-180

    181.46

    9.92

    8.27

    4500

    -

    -

    -

    -

    -

    GM6-224

    236.28

    7.62

    6.35

    4500

    -

    -

    -

    -

    -

    Certificate:
    • CE Approved
    • China CCC certificate(3C)
    Order Information:
    • Minimum Order: Negotiable
    • FOB: Taichung port, Keelung port
