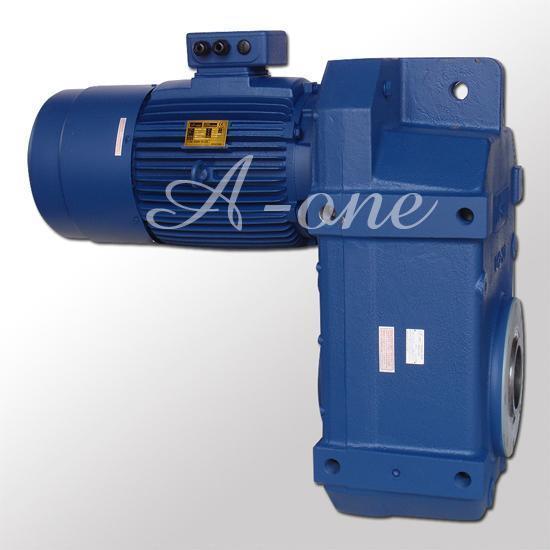

    Parallel shaft gear motor--GM8

    Parallel shaft gear motor--GM8

    Parallel shaft gear motor

    Product ID: GM8-SERIES(A-one)

    Gear boxes are designed with helical gear which makes it operate smoothly and quietly. It is characteristic of high torque and low backlash.

    The A-one gear motors applies modular design. Ratios are designed and selected to correspond with the normal usage of customers. Gear units are available for foot or flange mounting and can be installed in any directions and positions provided.

    Specification:
    Max. output torque: 16500Nm

    Ratio: 11 ~ 224
    Power: 7.5kW ~ 45kW
                                                          Output speed: 320rpm ~ 4rpm
                                                          Output hollow shaft: key way 100mm or 110mm

     more pictures...gear motor                      Options
        Output flange
        Output shaft
        Spring operated disc brake, DC-Voltage
        Forced cooling fan
        Manual release of brake
        Space heater
        Thermal protector






    a-one

    Specifications:


    Gear unit Type

    I
    Ratio


    Output speed n2

    Output
    torque T2


    Input torque of input unit T1(Nm)

    (for Fs=1.0)

    (60Hz)rpm

    (50Hz)rpm

    Nm

    50

    70

    100

    120

    190

    240

    290

    GM 8-4

    4.26

    422.54

    352.11

    7400

    GM 8-5

    5.07

    355.03

    295.86

    7700

    GM 8-6

    6.09

    295.57

    246.31

    8100

    GM 8-7

    7.45

    241.61

    201.34

    8400

    GM 8-9

    9.33

    192.93

    160.77

    8700

    GM 8-11

    11.21

    160.54

    133.78

    14500

    GM 8-14

    13.71

    131.26

    109.38

    15000

    GM 8-18

    18.75

    95.99

    79.99

    15000

    GM 8-22

    22.94

    78.48

    65.40

    15000

    GM 8-28

    28.73

    62.66

    52.22

    15000

    GM 8-36

    35.97

    50.04

    41.70

    16500

    GM 8-45

    45.09

    39.92

    33.27

    16500

    GM 8-56

    55.46

    32.46

    27.05

    16500

    GM 8-71

    70.27

    25.62

    21.35

    16500

    -

    -

    GM 8-90

    92.75

    19.41

    16.17

    16500

    -

    -

    -

    GM8-112

    117.52

    15.32

    12.76

    16500

    -

    -

    -

    GM8-140

    144.02

    12.50

    10.41

    16500

    -

    -

    -

    -

    GM8-180

    177.14

    10.16

    8.47

    16500

    -

    -

    -

    -

    -

    GM8-224

    224.45

    8.02

    6.68

    16500

    -

    -

    -

    -

    -

    Certificate:
    • CE Approved
    • China CCC certificate(3C)
    Order Information:
    • Minimum Order: Negotiable
    • FOB: Taichung port, Keelung port
